Lamar Mechanical Specs
The following specifications can be used when creating a production file for the vast majority bulletins and retrofit poster panels in Lamar's inventory. The mechanical specifications for each are explained below.
Bulletin Specs
- Hold your design to the dimensions of the structure. The structure size represents the actual image area of the billboard.
- Bleed your background by 6” on all four sides. This makes the overall vinyl size 1’ larger than the image area in both height and width.
- The production facility should make 4” pockets on the back of the vinyl for installation. This does not change the overall size of the vinyl.
See illustration below. Click to enlarge.
TriVision Specs
- Hold your design to the dimensions of the structure. The structure size represents the actual image area of the billboard.
- TriVision/RigiBlade panels require no bleed. Bulletin templates can be used for this product, the bleed just has to be removed by cropping to the Live Area.
- The individual blades will be cut to the specific panels required width in production.
See illustration below. Click to enlarge.
Poster & Retro Specs
- Hold your design to 10’5” x 22’8”.
- Bleed your background by 3/4” on all four sides.
- Overall vinyl size (Final Size) can not be any larger than 10’-6.5" x 22’-9.5" or any smaller than 10’6 x 22’9. Any other size will not fit in the structure.
- The production facility should make 4” pockets on the back of the vinyl for installation. This does not change the Overall Size (Final Size) of the vinyl.

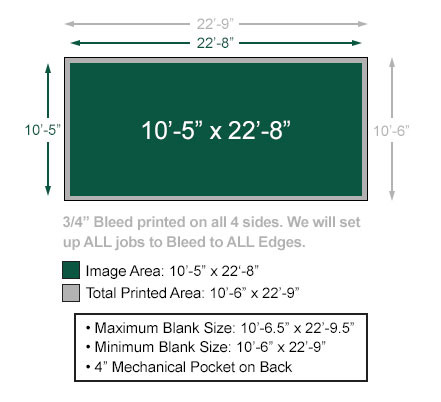

See illustration below. Click to enlarge.
Material, Substrate, Ink & Warranties
Bulletins
Material/Substrate:
Recommended: Cooley CoolFlex Front lit vinyl
Preferred weight: 7 ounces or lighter
Minimum Warranty: 1 year against ink fade, ink peeling, and failure of material or pockets.
Note: 12 ounce material is not preferred, but will be accepted at this time.
Inks: Inks must be weatherproof/waterproof with sufficient UV protection, and in compliance with product bulletin, bulletin specifications or substrate manufacturer.
Posters
Material/Substrate- Vinyl:
Recommended: Cooley CoolFlex Front lit
Weight: min 7 oz./sqyd - max 12 oz./sqyd
Material/Substrate- Polyethylene Paper Replacement:
Recommended: InterWrap PosterFlex™
Weight: 2.9 oz./sqyd
Minimum Warranty: Warranty protects against ink fade ink adhesion, and failure of material or pockets.
Vinyl: 1 year
PE: 30 days
Production Resolution & Templates
Lamar Bulletins and TriVisions are set up at 1/2" = 1' scale @ 300ppi Document Resolution. This equates to about 12.5 pixels per linear inch on the final product.
Lamar Posters 1" = 1' scale @ 216ppi Document Resolution. This equates to 18 pixels per linear inch on the final product.
Banners can be set up at size @ 72ppi. Extra large banners (over 50sqft.), may be set up at size @ 36ppi to save on file size.
Common Poster Templates:
18ppi Actual Print Resolution. Templates are set up at 1" = 1' Scale @ 216ppi Document Resolution.
Live Area
w/ Bleed
Common Bulletin & TriVision Templates:
12.5ppi Actual Print Resolution. Templates are set up at 1/2" = 1' Scale @ 300ppi Document Resolution.
*Just crop to the live area and remove the bleed for TriVision designs.
Live Area
w/ Bleed
Design Specs
Compatible Software: Adobe Photoshop, Illustrator, or InDesign.
Acceptable Formats: Native formats from the software listed above or Adobe PDF, TIFF, or EPS. *Fonts embedded where applicable.
Custom Sizes
To request another template size not listed on this page, please email LG Web Team. Please provide the size and product type (bulletin, poster, banner, etc.) and a team member will send you one shortly.
